Max. Cut-Off Wire Diameter: 12mm (1/2") Mild Steel, 10mm (3/8") High Tensile
Max. Cut-Off Length: 120mm
Max. Shank Length: 100mm
1st Die Kickout: 160mm
2nd Die Kickout: 100mm
1st PKO Stroke: 20mm
2nd PKO Stroke: 35mm
3rd PKO Stroke: 15mm
Output: 40-100 PPM
Equipped With:
Pay-off

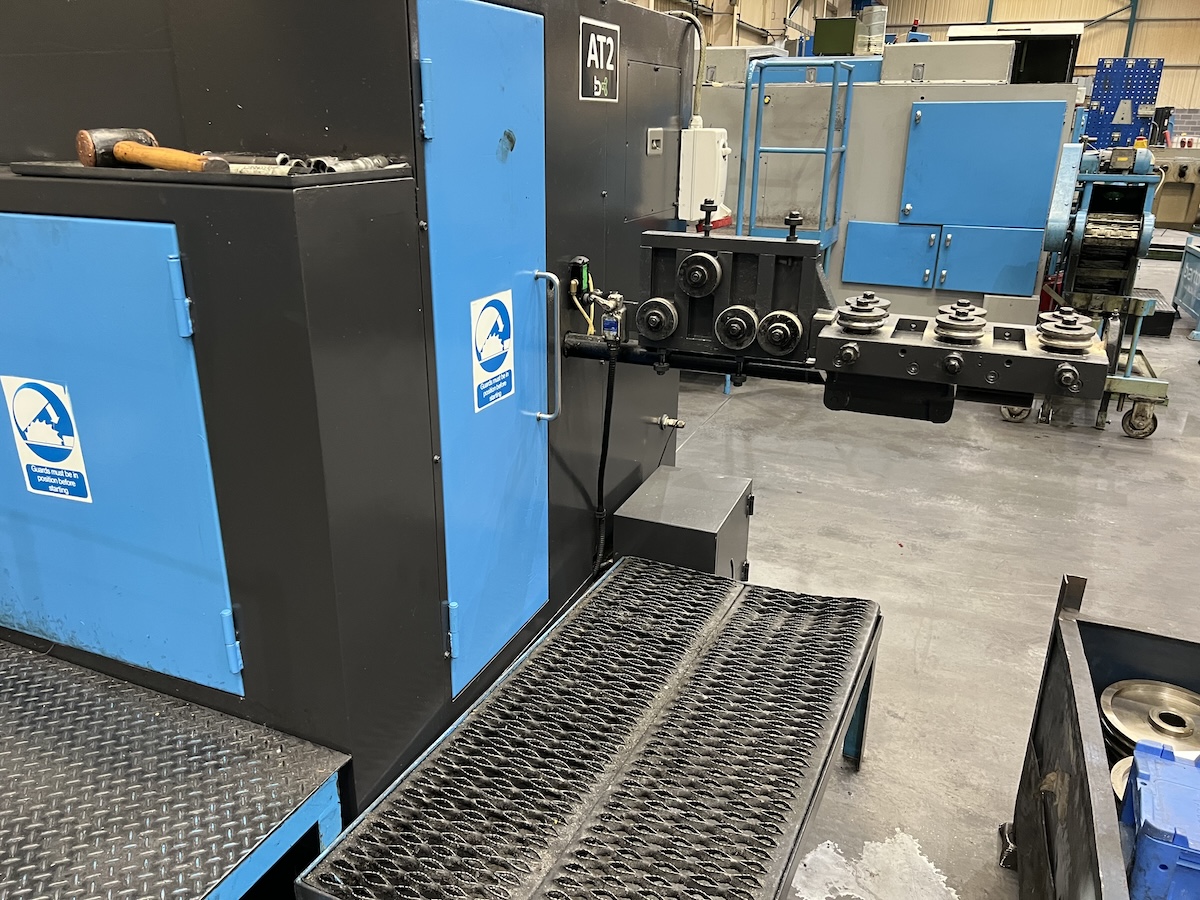

Two Plane Wire Straightener
Stripper on 2nd Die

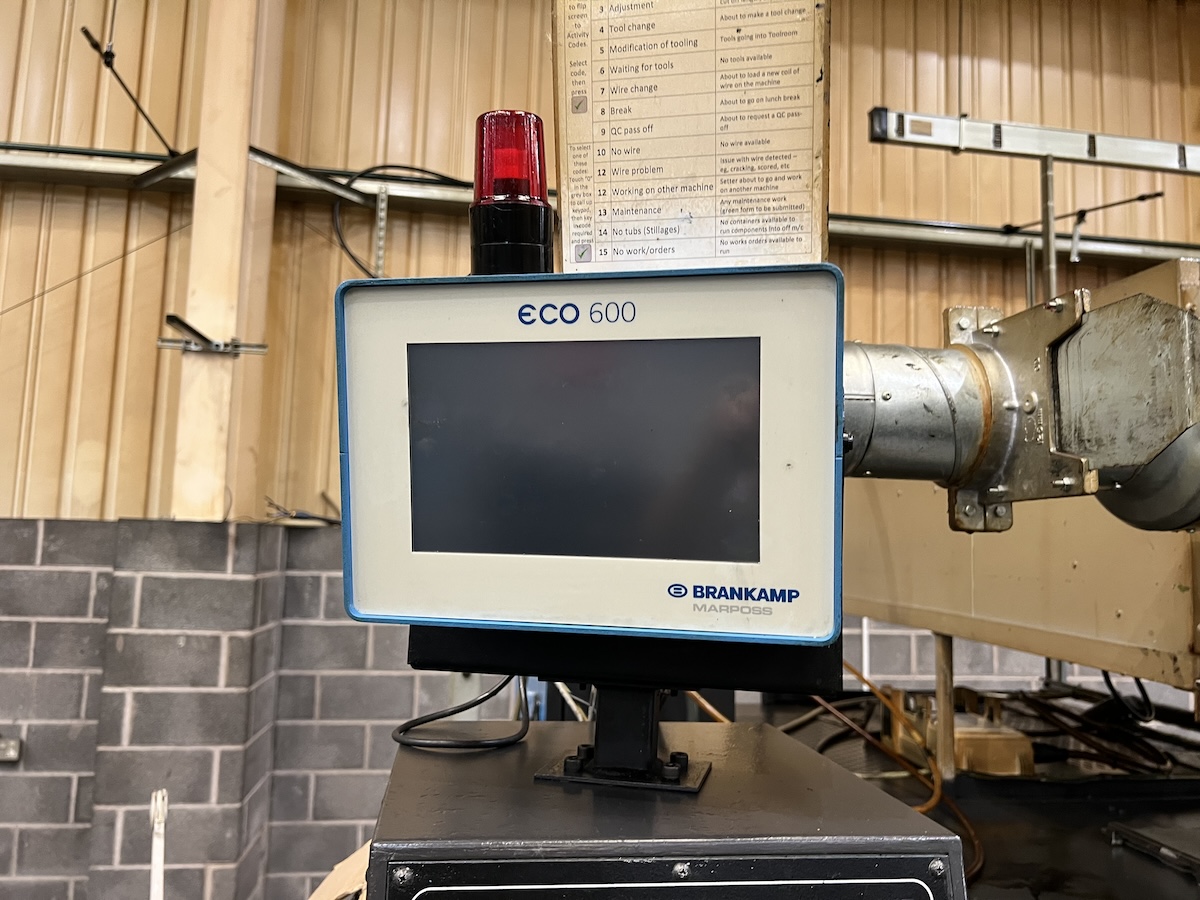

Bramkamp ECO 600 Process Monitor

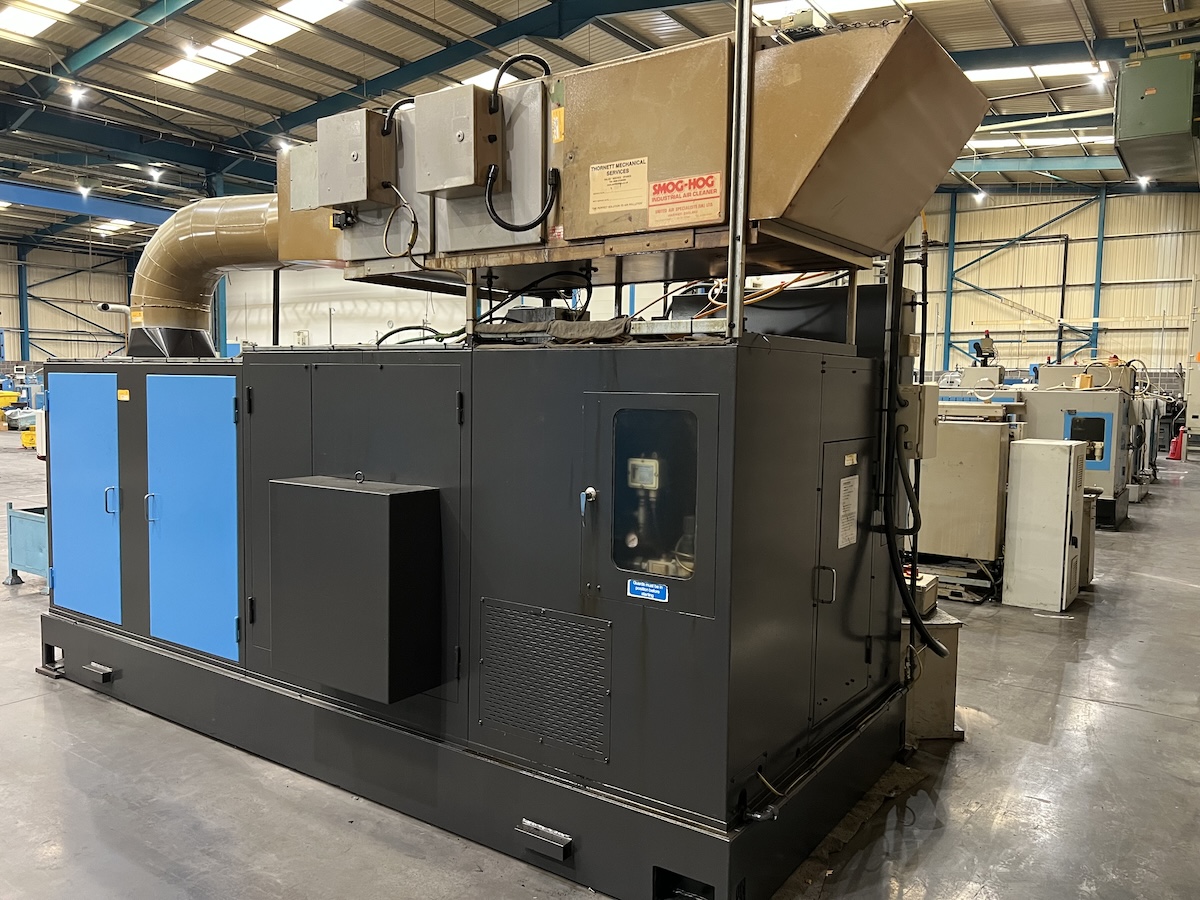

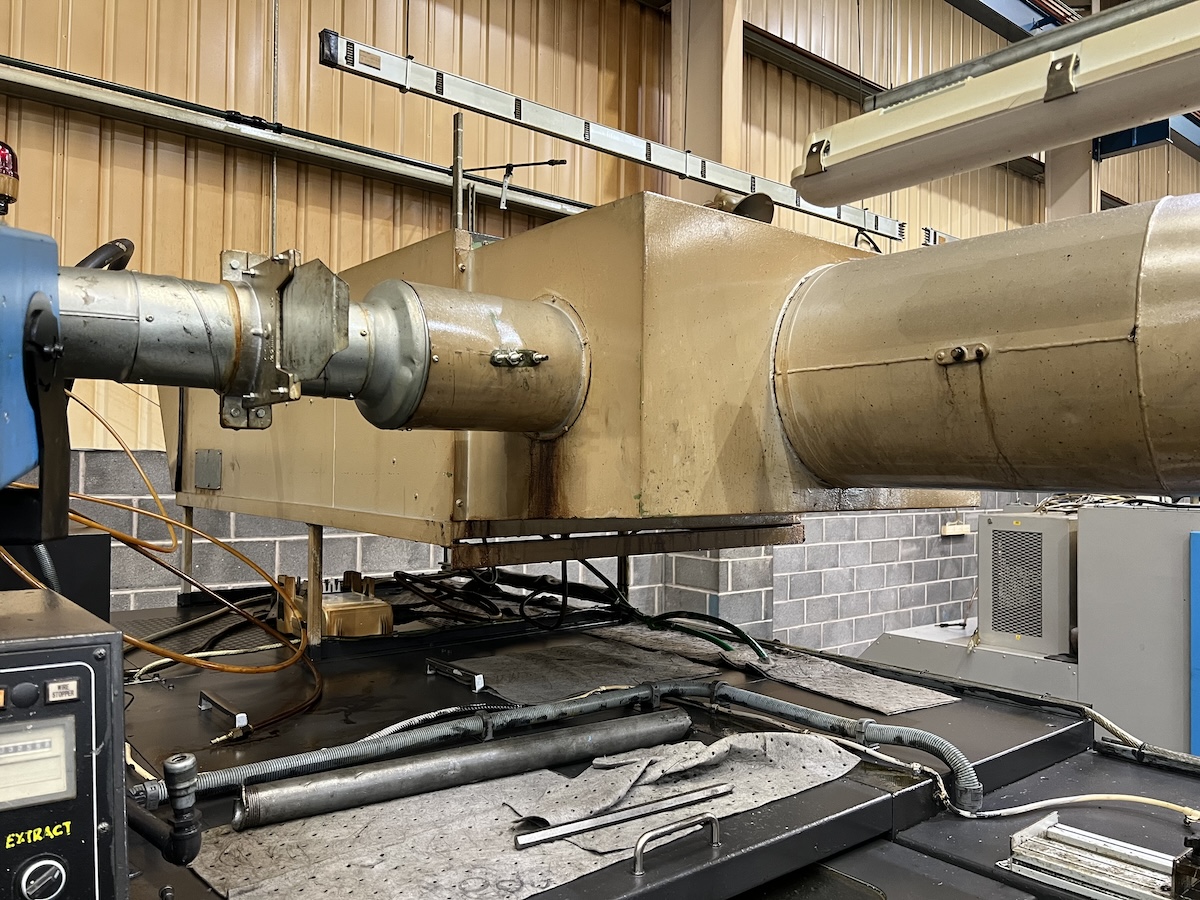

Smog-Hog ESP Fume Extraction
Parts Conveyor
